Heavy Duty Freestall Designs and Mounting System

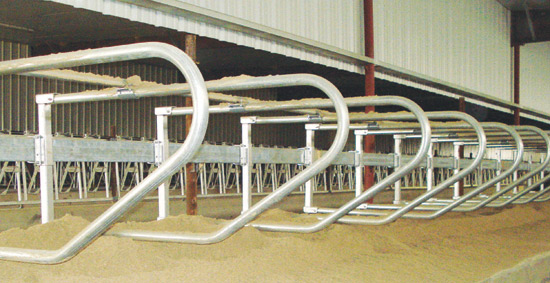

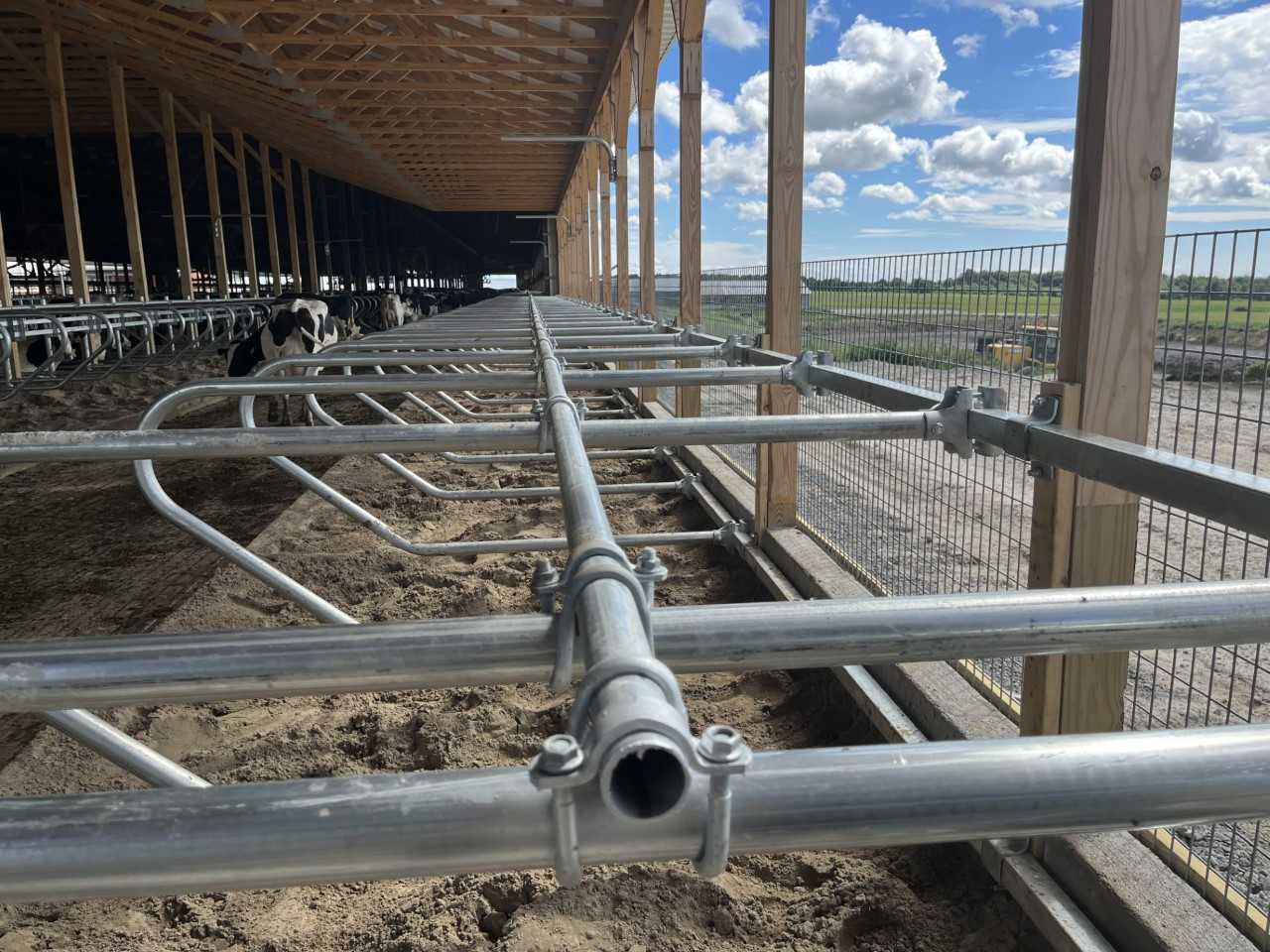

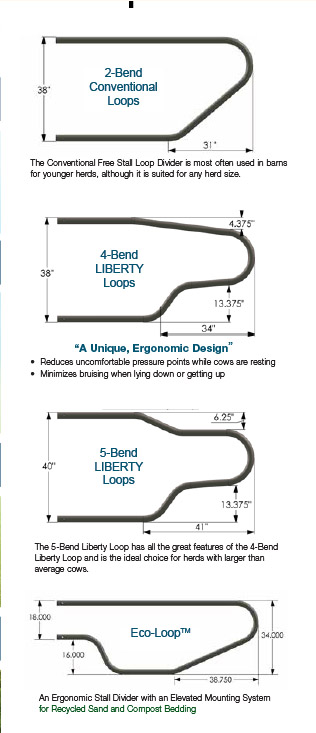

Loop designs
Variety of Loop Designs are Available for Mature Cows

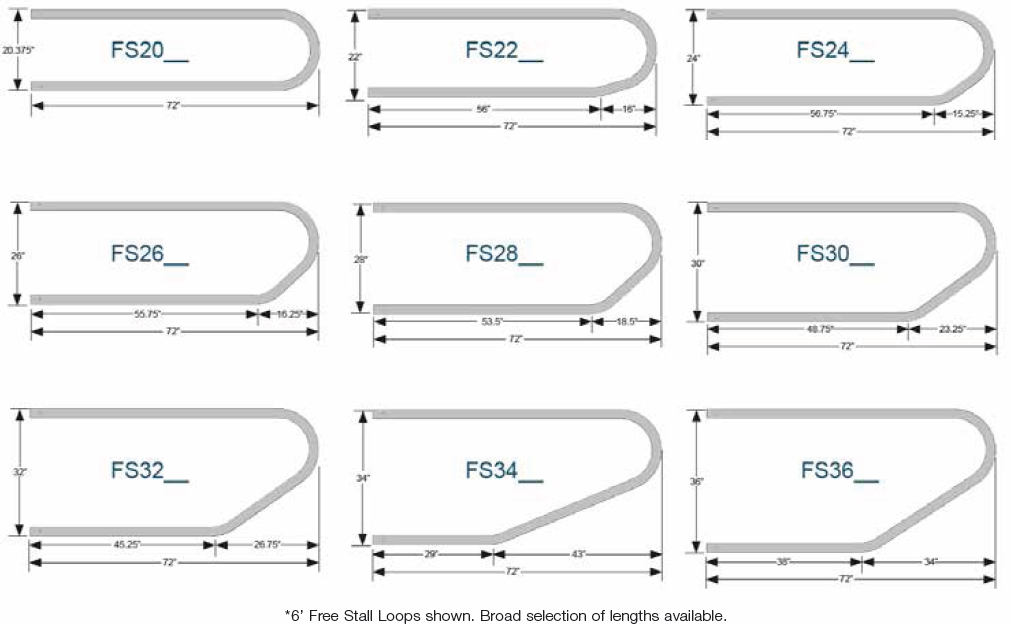

Heifer Loops
Heifer Loop Design Specs-Available in Custom Length

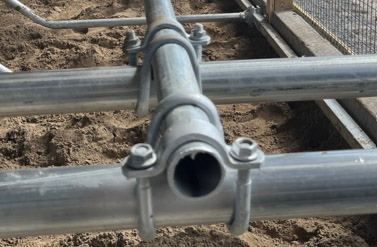

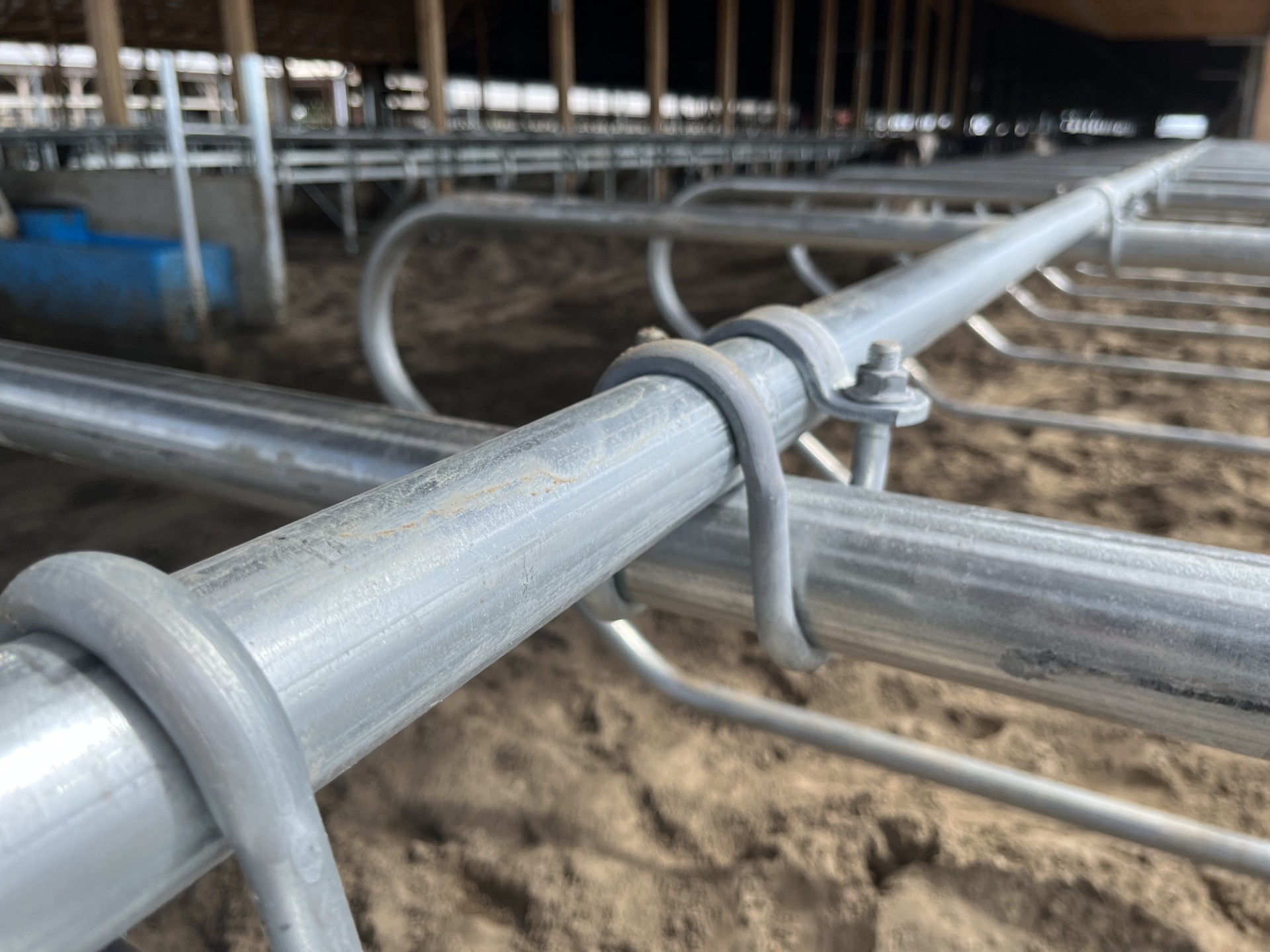

Neck Rail Clamp
Unique, Durable, Minimum Slippage.
Will hold the neck Rail Tight to the Loop better than other styles of Clamp.
LESS SLIP MORE GRIP!

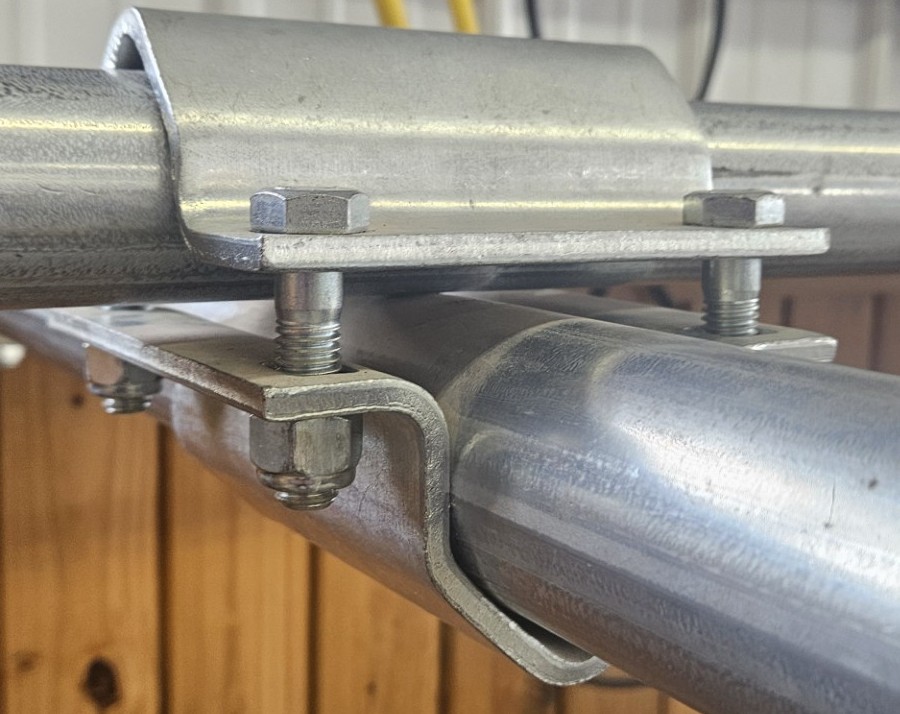

Heavy Duty Neck Rail Clamps
Heavy 1/4" Thick Galv. Steel With 1/2" Grade 5 Bolts.
Tamper Design to Fit Different Size Pipe.
#2041 HDB-Fits 2 3/8" and 1 7/8" and 2 3/8" x 1 5/8"
#2041 HDA-Fits 1 7/8" x 1 5/8" and 1 1/2" x 1 1/4

Stall Mounting Systems

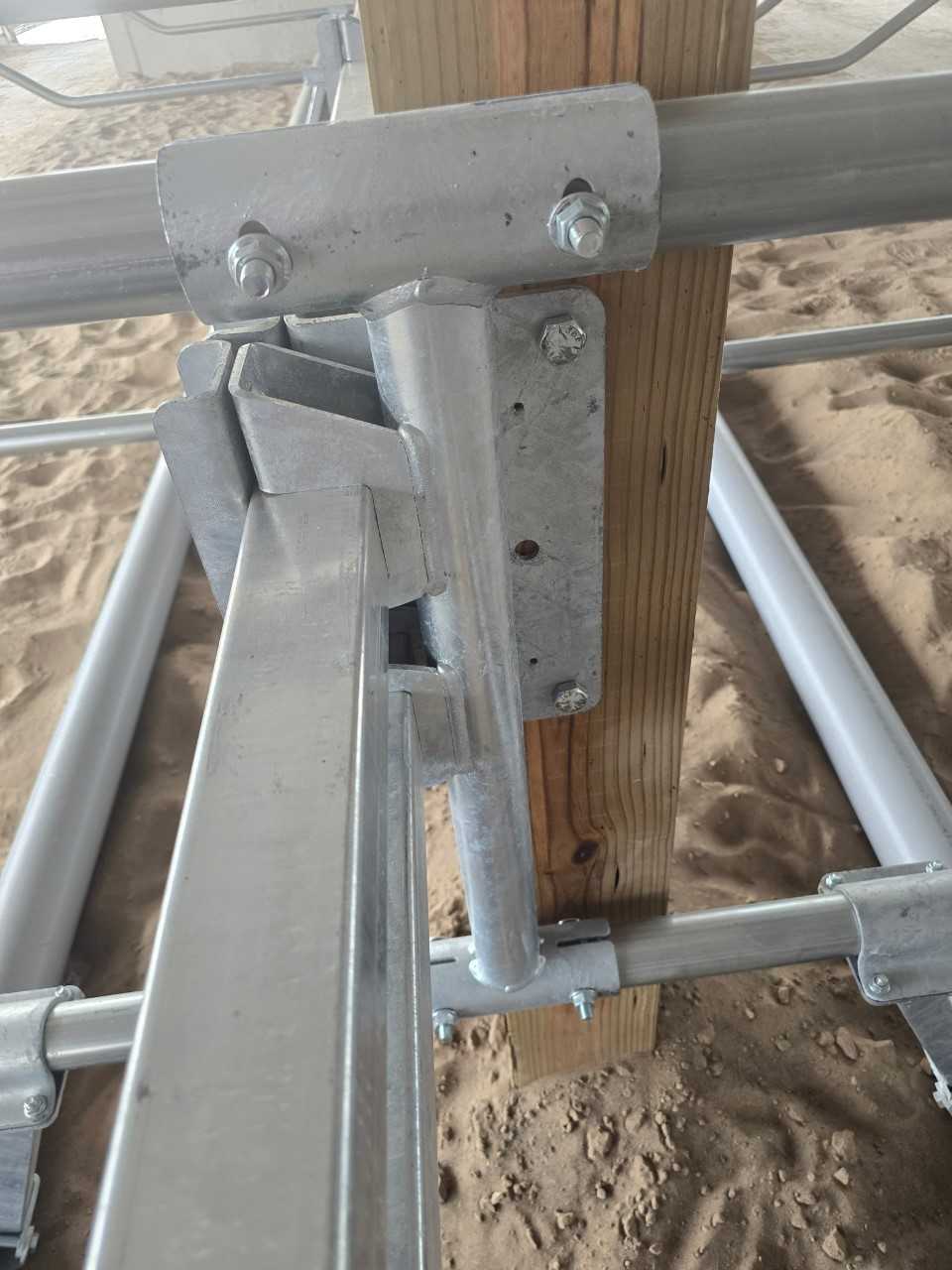

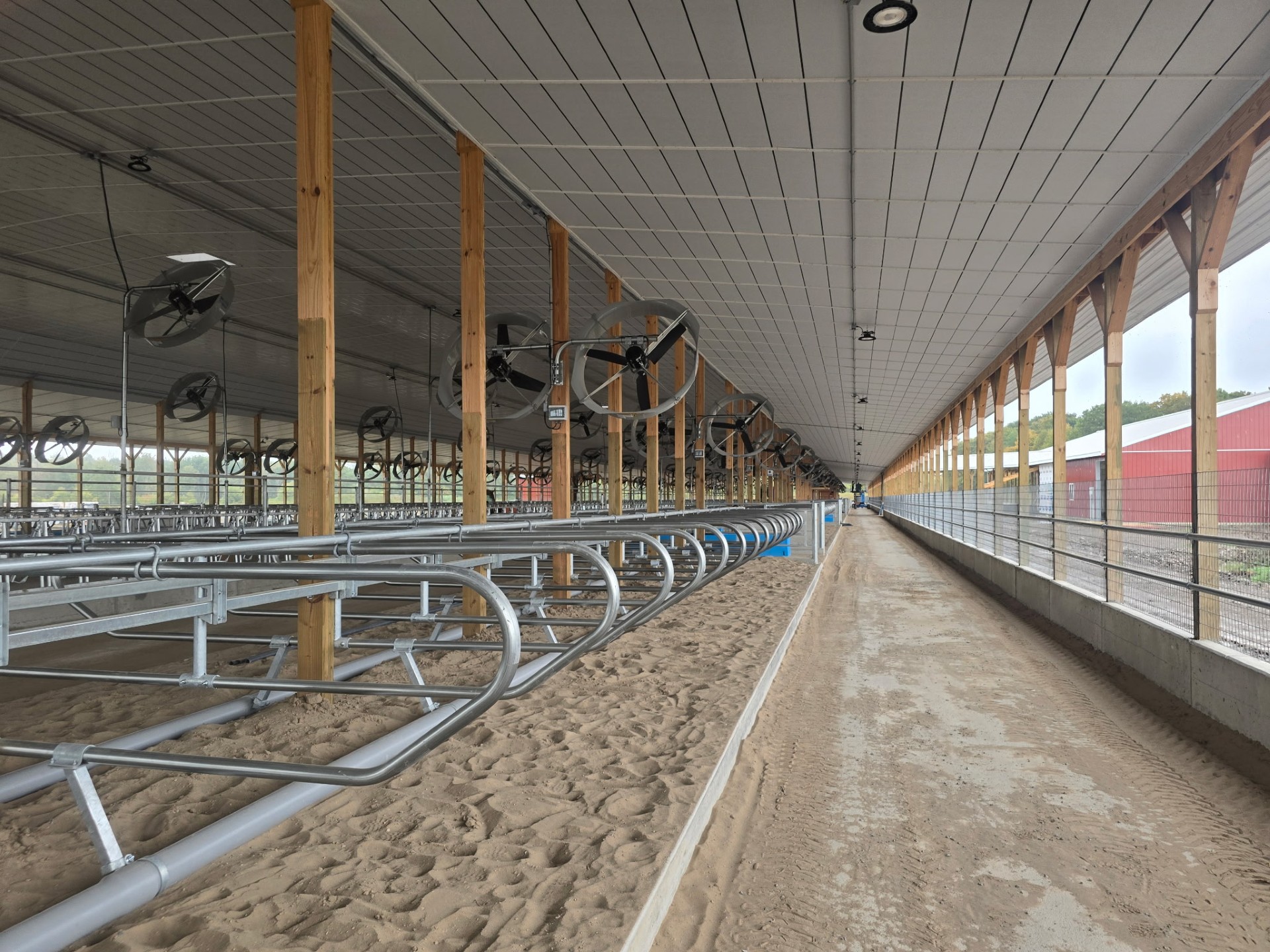

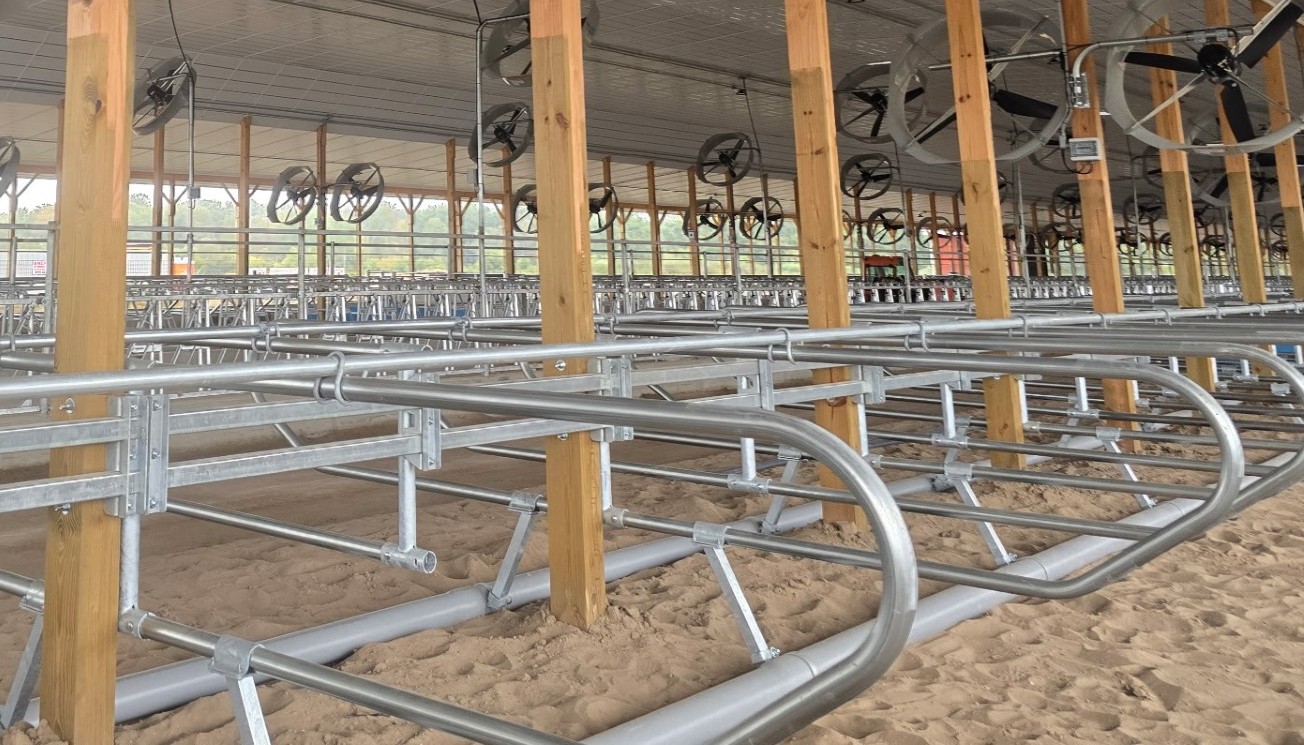

Freedom Suspension System
Heavy Duty, Improved Lunging Space, Excellent Cow Comfort, Raised Mounting System, 2.5" Square Galv.
Mounting Rails and Adjustable Stall Width!

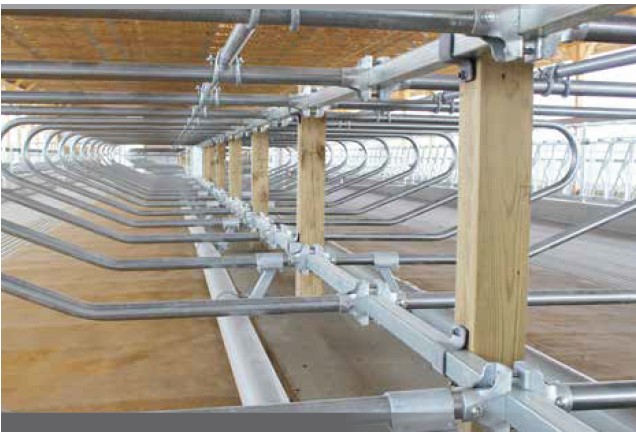

Dual Rail Mounting System
Freestall Dual Rail
2.5" Square Galv. Mounting Rails Top and Bottom, Simple, Durable and Economical

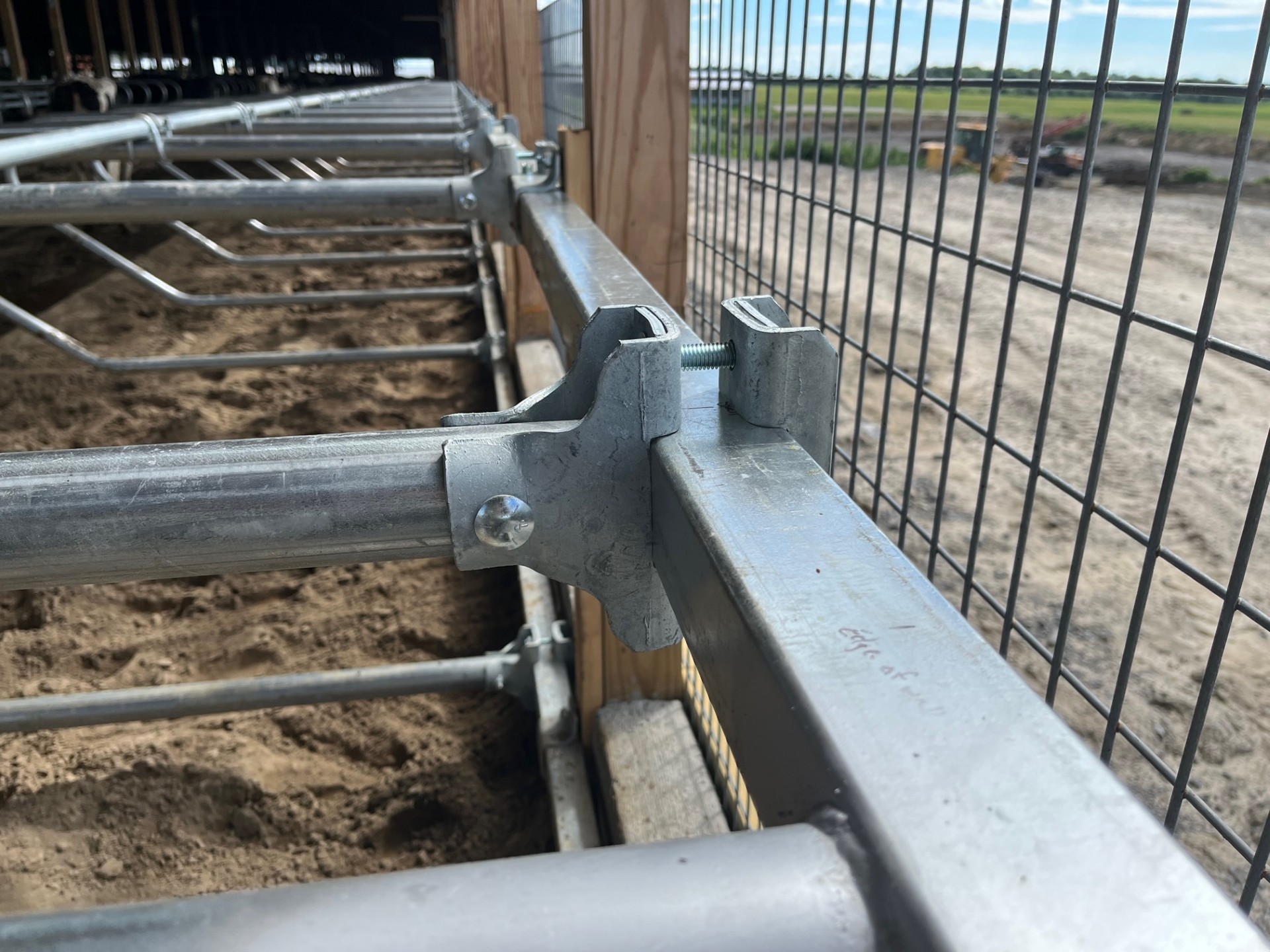

Geo Clamp Freestall Mount
Unique Heavy Duty Clamp, Notched to fit tight on the mounting Rail
This Versatile, Galvanized, Rugged Mounting Clamp Will Work for Individual Wood Post Mounting, DBL(Head to Head) Rows and SGL Row of Freestalls.
They Will Also Mount Loops to Existing 4" Channel.

Double GEO Clamp
Unique Heavy Duty Clamp, Notched to fit tight on the mounting Rail
This Versatile, Galvanized, Rugged Mounting Clamp Will Work for Individual Wood Post Mounting, DBL(Head to Head) Rows and SGL Row of Freestalls.
They Will Also Mount Loops to Existing 4" Channel.

Geo Clamp Freestall Mount
Unique Heavy Duty Clamp, Notched to fit tight on the mounting Rail

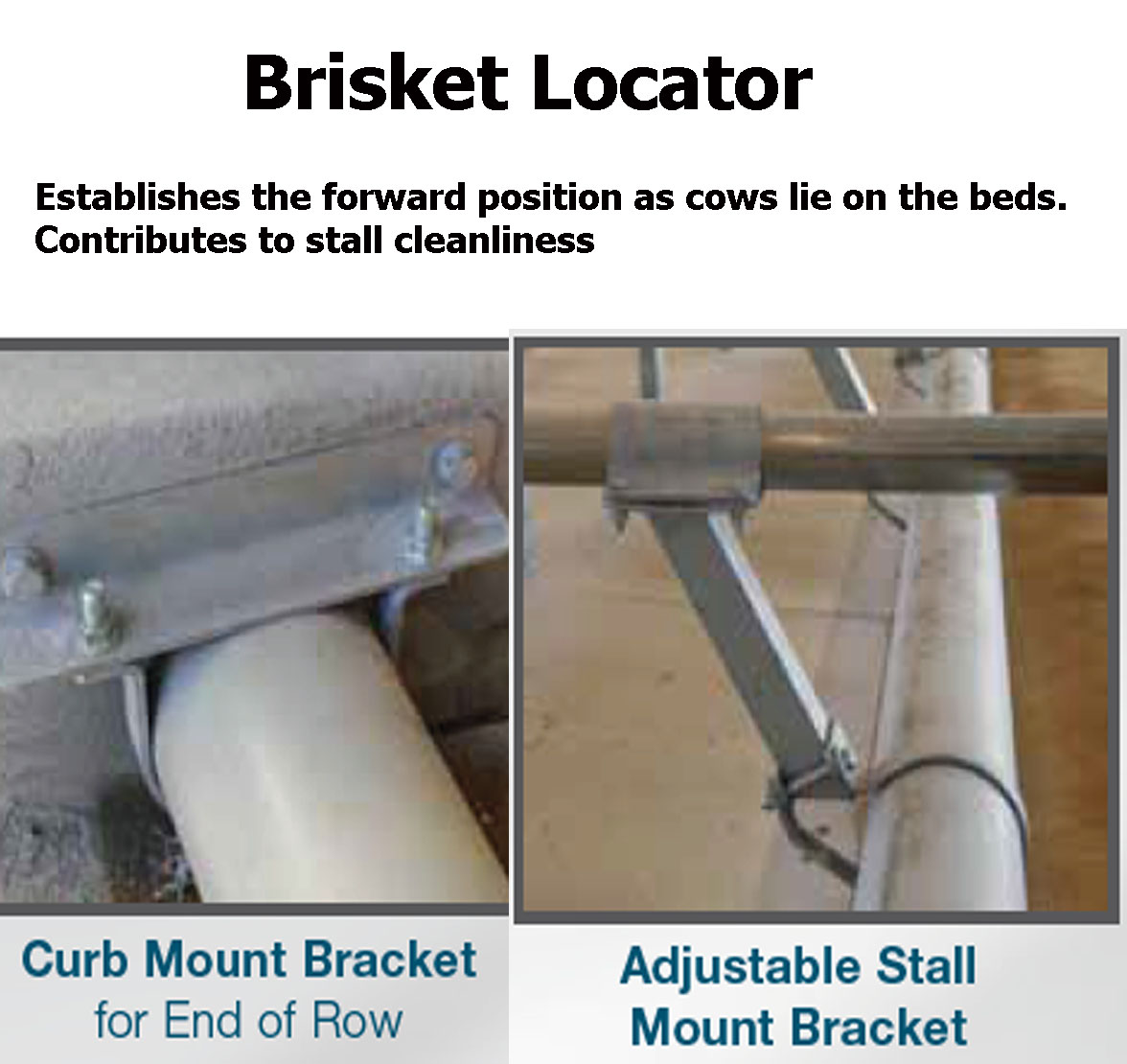

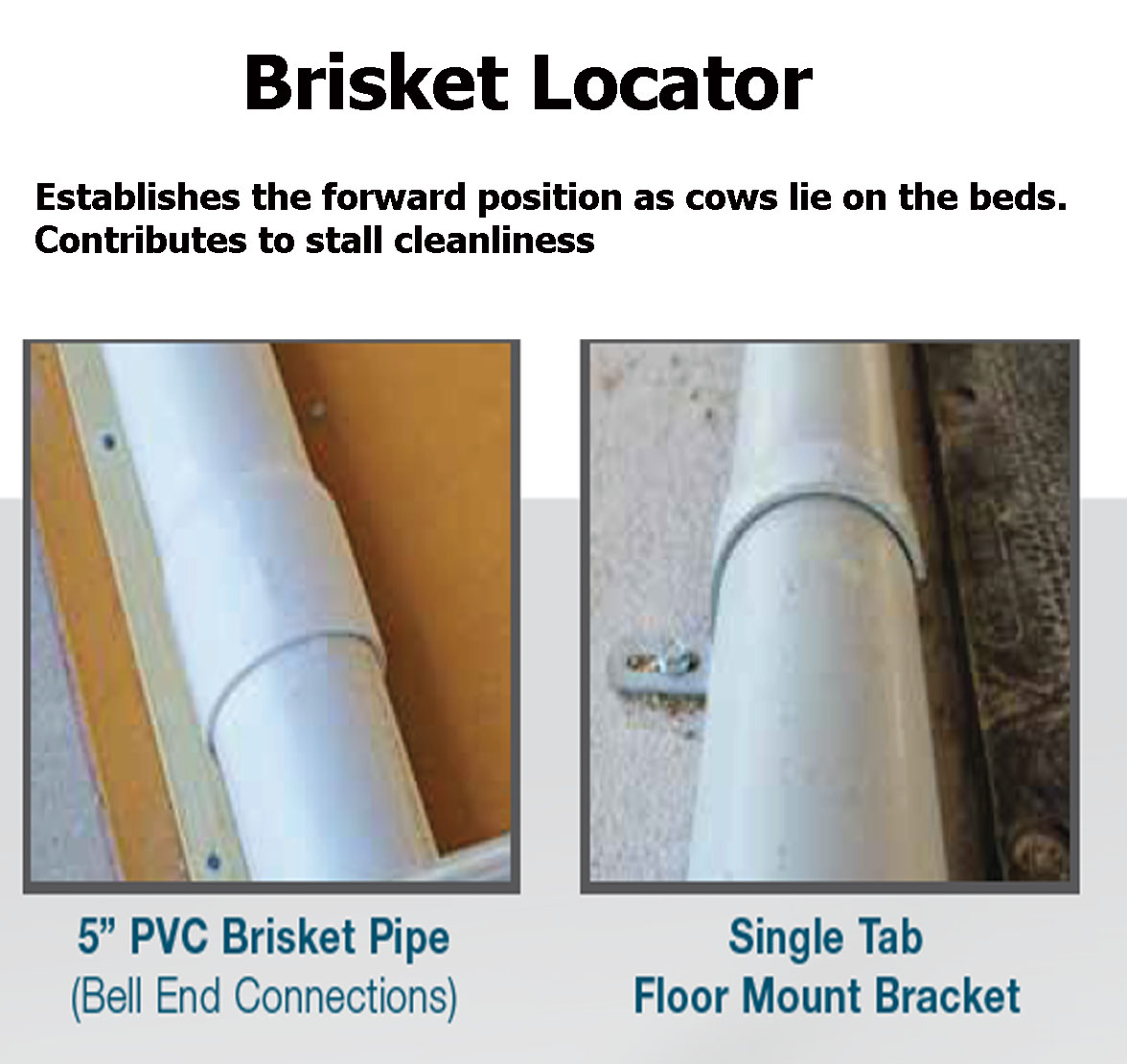

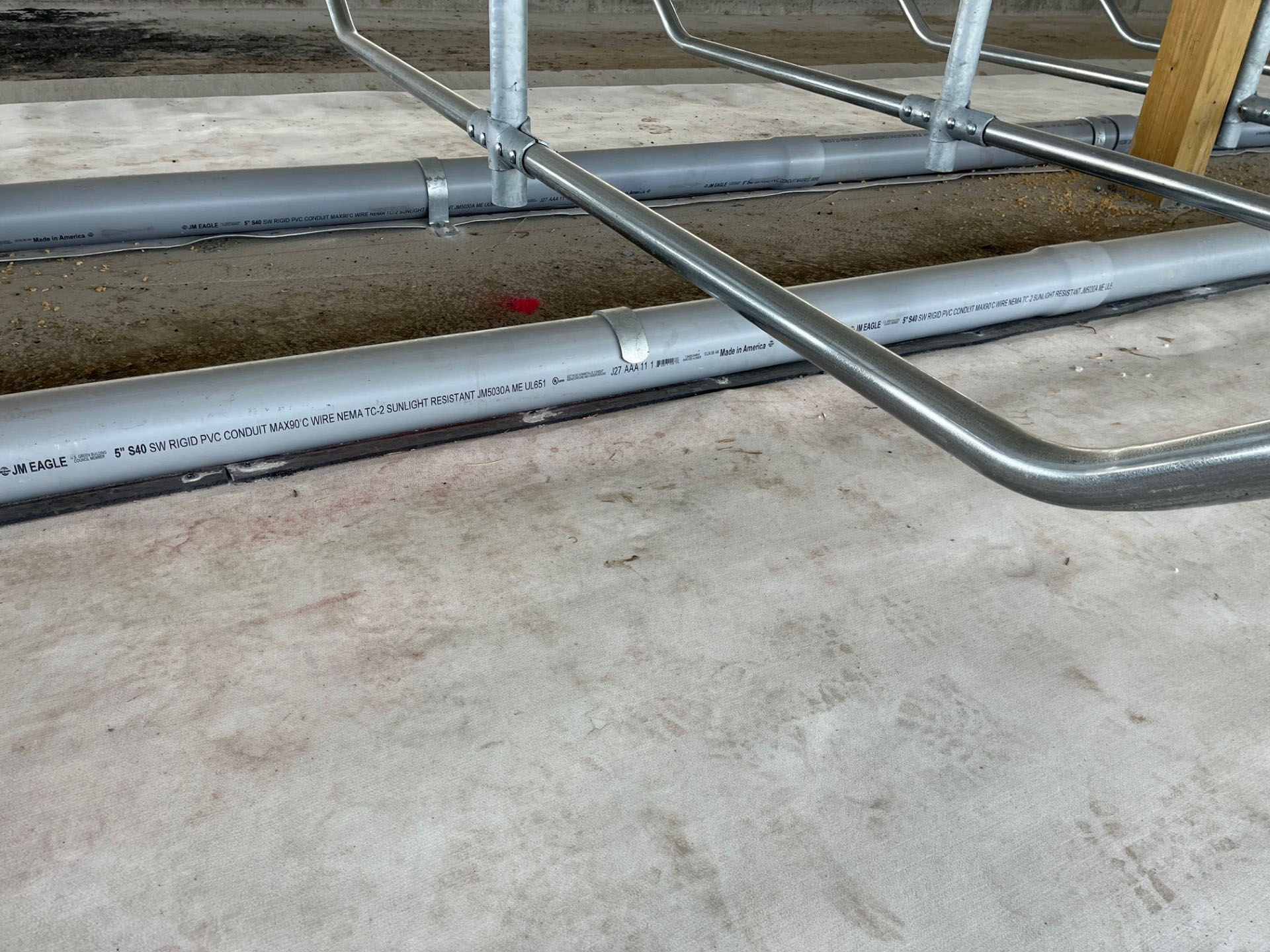

Floor Mounted Brisket Locator
Option for Mattress and Pack Mat Installations.
5" SC 40 PVC Conduit with Swaged Ends for Ease of Installation and Durability.
Mounted to a Concrete Floor with and Heavy-Duty Galvanized Bracket.

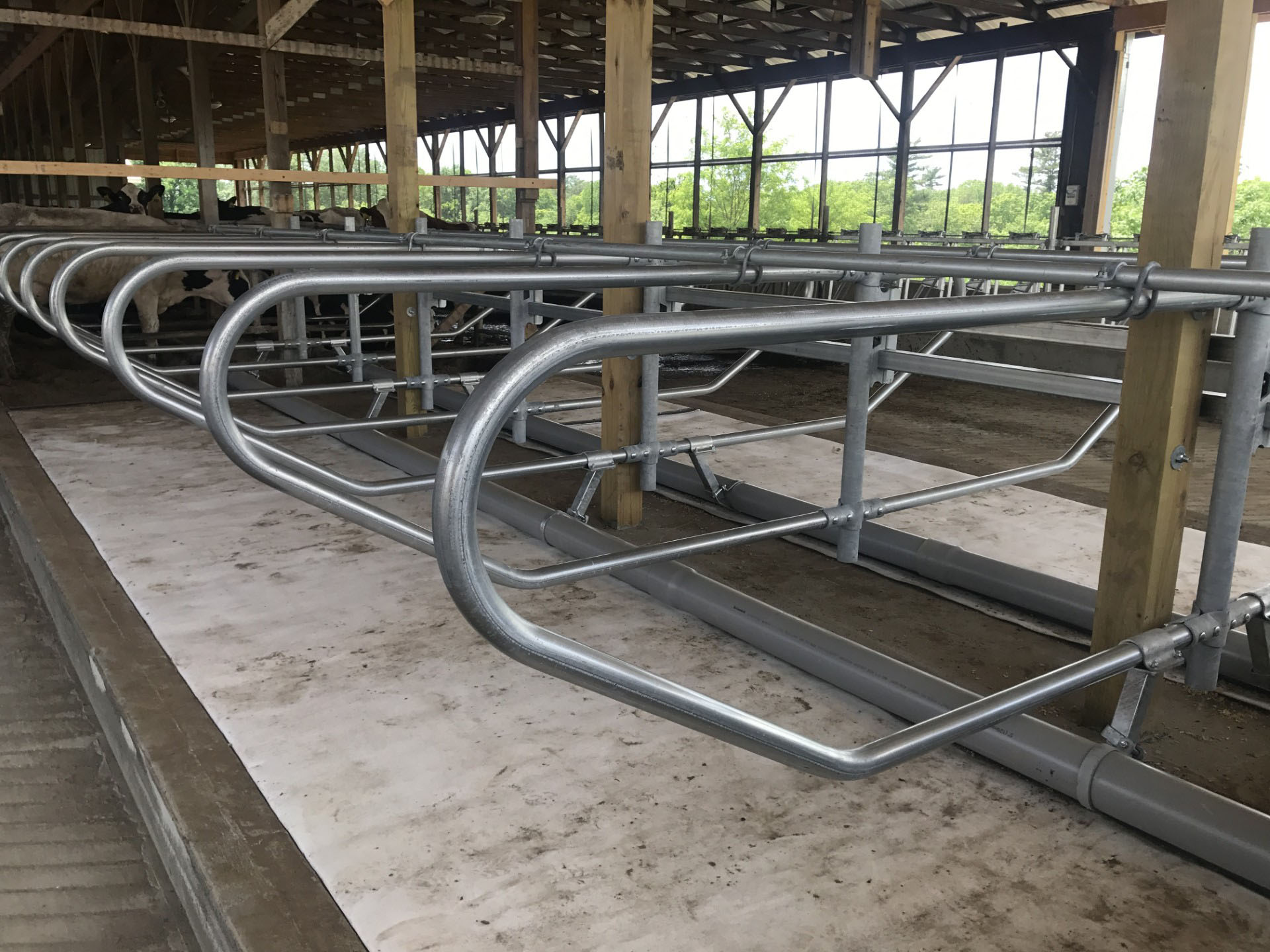

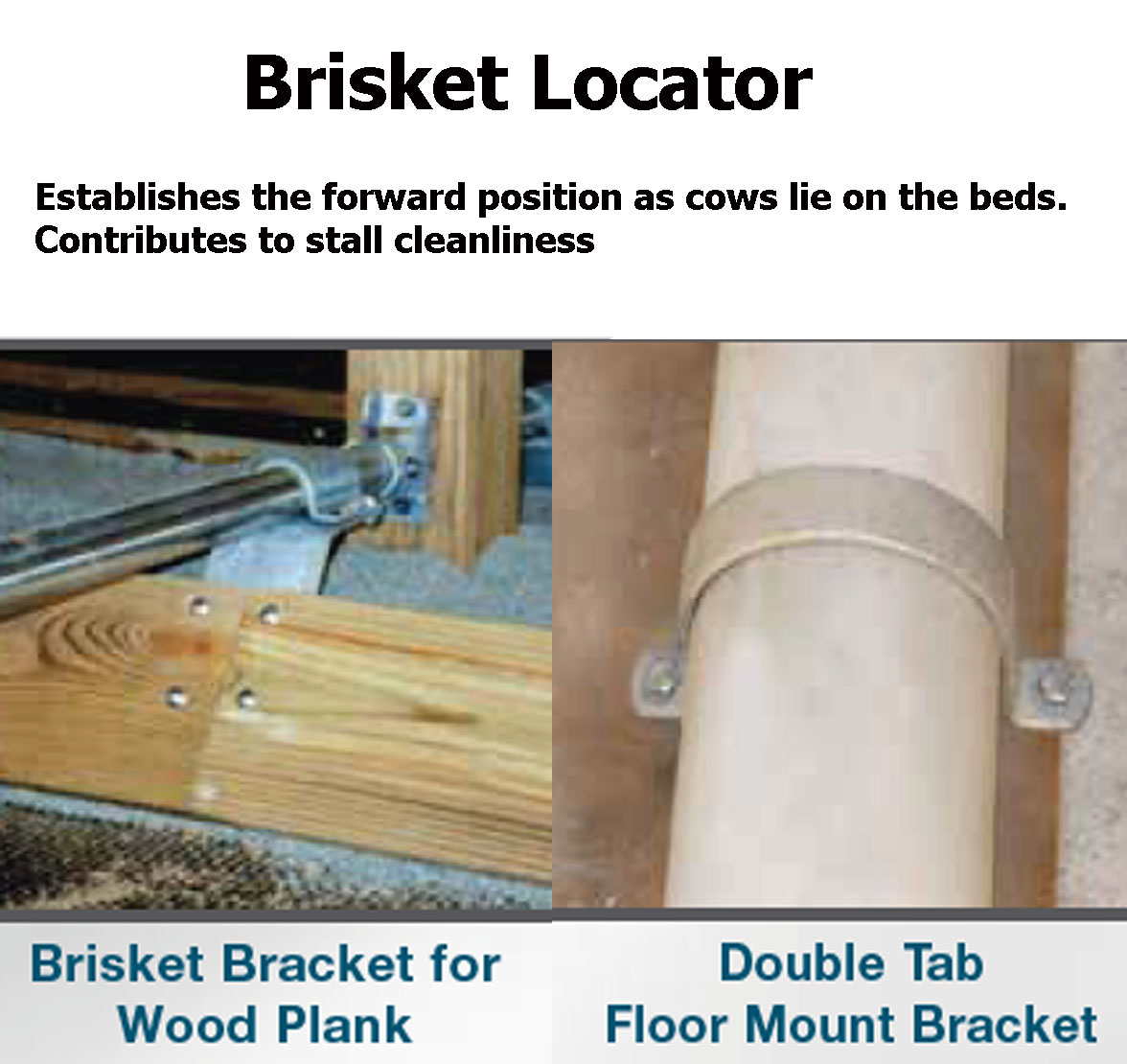

Stall Mounted Adjustable Brisket Locator
Option for Deep Bedded Sand Bed.
5" SC 40 PVC Conduit with Swaged Ends for Ease of Installation and Durability.
Mounted to the Bottom Pipe of Freestall Loop with and Adjustable Heavy-Duty Galvanized Bracket.

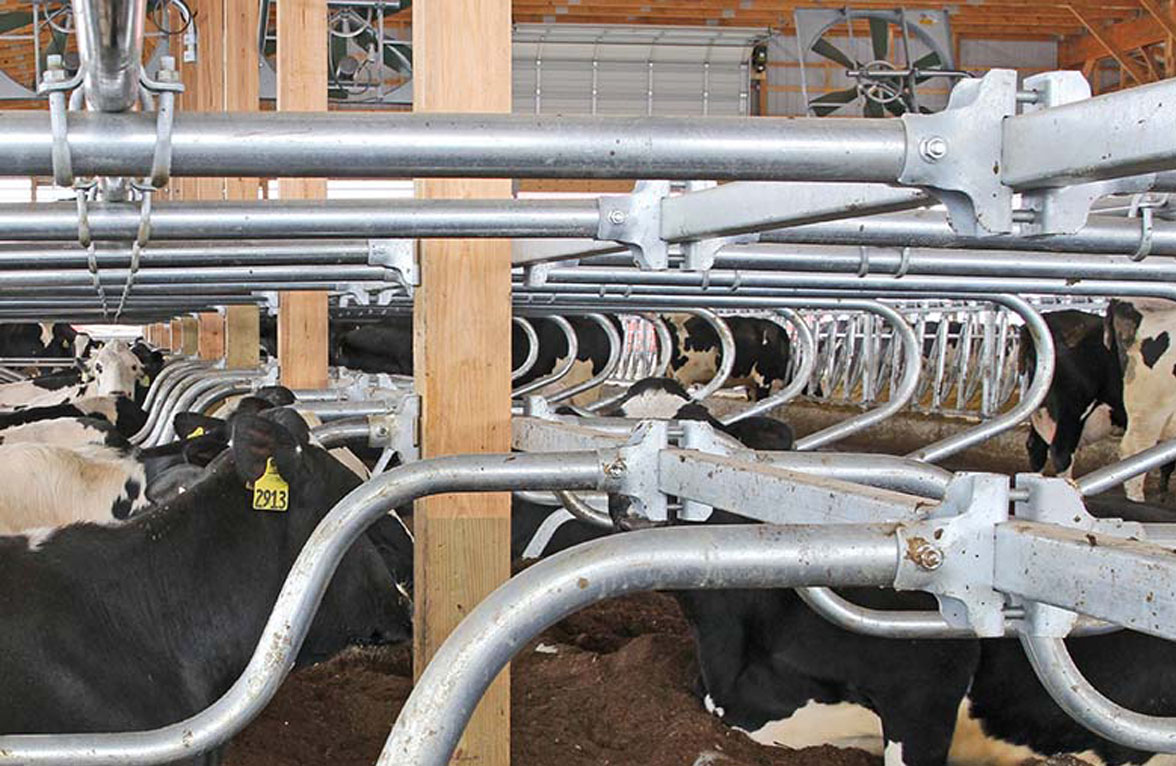

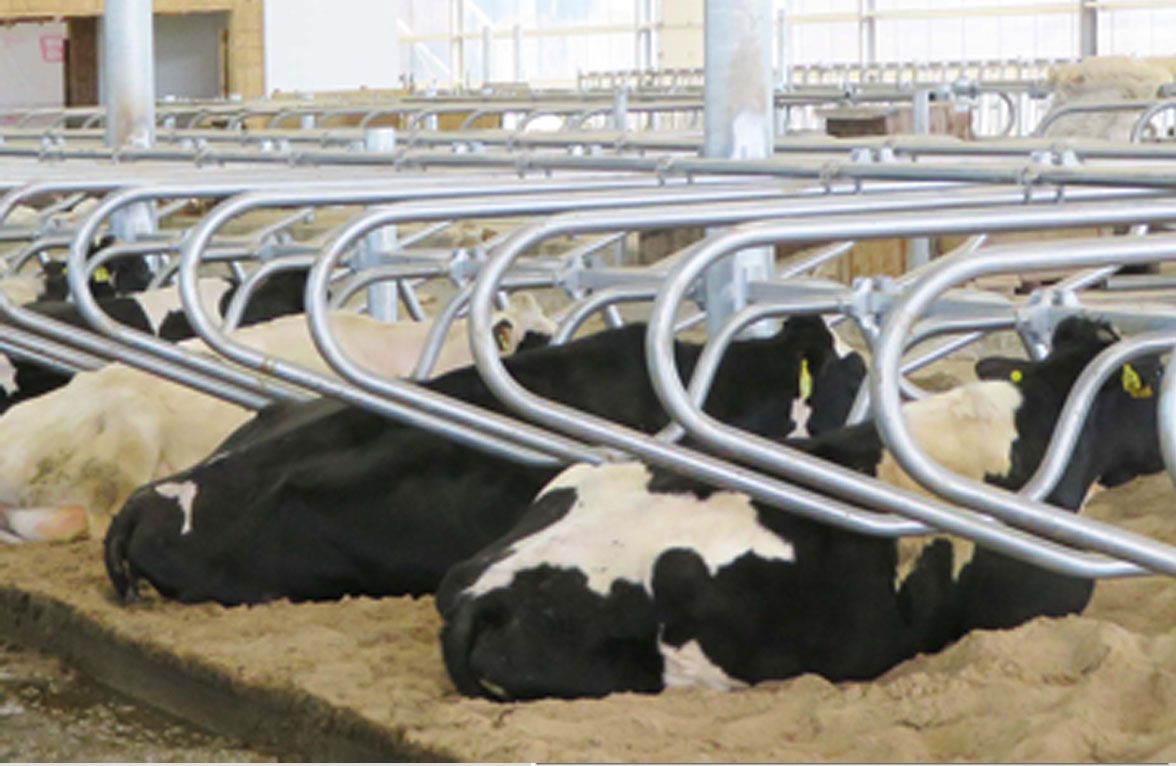

Ecco Mounting System
Adds More Freedom, and it Keeps the mounting Rails and the Bottom Leg of Loop Away from the Bedding Material.
